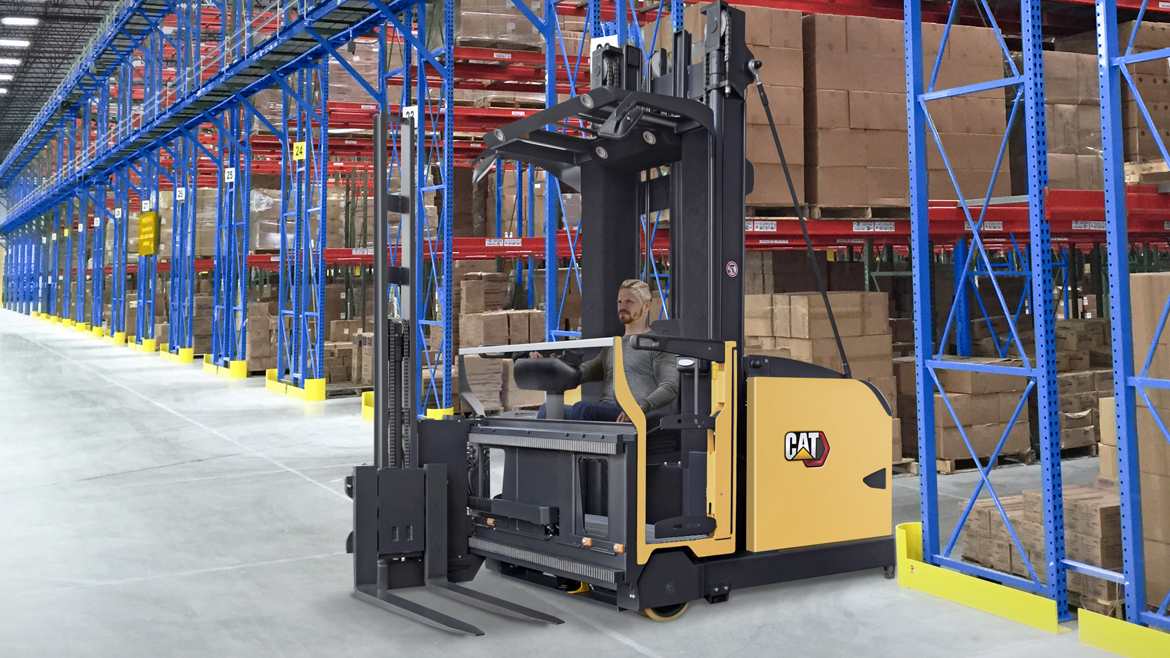

I carrelli trilaterali man-up NVT Cat® sono perfetti per lo stoccaggio e il commissionamento in corridoi molto stretti (VNA) e scaffalature alte.
Ciascuno di essi è completamente personalizzato per un adattamento preciso al vostro spazio di magazzino e alle esigenze dei vostri carichi e operatori. L'ergonomia e il comfort superiori rendono piacevole l’impiego, mentre le prestazioni potenti e i bassi costi di gestione aumentano i profitti.
Vi sono cinque modelli principali con portate comprese tra 1.1 e 1.5 tonnellate: NVT11, NVT12, NVT13, NVT14 ed NVT15. Gli altri due soddisfano richieste particolari: l’NVT20 è adatto a carichi insolitamente pesanti (fino a 2.0 tonnellate) e l’NVT15XL ai sollevamenti eccezionalmente alti (fino a 19 metri).
L'elenco delle opzioni disponibili è molto vasto. Gli esempi vanno dalla guida meccanica o con cavo induttivo, ai sistemi per la pesatura, al controllo dell’altezza di posizionamento e della velocità, al riscaldamento della cabina, ai ventilatori e alle combinazioni di finestre. Opzioni avanzate come le grate laterali basculanti e l'unità di comando inclinazione rendono le operazioni di prelievo più semplici e produttive, mentre la telecamere a 360°, il sistema di inclinazione attivo e la semi-automazione possono migliorare la sicurezza, la produttività e la precisione. Il vostro concessionario locale di carrelli elevatori Cat può fornirvi tutte le relative informazioni.
- Low-weight design reduces energy consumption and wear, as well as enhancing performance.
- Separate proportional valve regulates cabin lowering speed more efficiently, for longer battery runtime, and extends component life.
- Low centre of gravity and lightweight construction avoid need for load wheel brakes, which would require regular adjustment, servicing, and replacement of worn parts.
- Adjustable load wheel height allows easy compensation for differences in wear between wheels or if one wheel is damaged, so no need to replace as pairs.
- Lubrication points improve performance and longevity of all cabin and mast bearings.
- Large spacing between auxiliary lifting mast bearings reduces deflection, lowers bearing stresses and increases durability.
- Large, closed wheel arches combine with guide rollers to protect load wheels from damage.
- Steering chain is adjustable, less sensitive to dirt and much more wear-resistant than the spur gear alternative.
- Strong steel doors enclose motor compartment, protect internal components – including electronic controls – and open to give easy, uncluttered access for servicing.
- Rapid fault analysis is possible via LED displays, PC connection or, remotely, through GSM mobile communication, to simplify and speed up repairs and maintenance.
- Long replacement intervals cut time and material costs for items like mast chains and hydraulic oil.
- Battery change is quick and easy using a counterbalance lift truck
- Flexible choice of cabin and chassis dimensions – in small increments – allows perfect fit with different aisles, applications and batteries.
- Latest AC drive technology generates fast lifting speeds for forks, masts and cabins, with low energy losses.
- Advanced mast design uses FEM (finite element method) to optimise stability, weight and performance.
- Duplex mast choices for all lift heights mean faster and more stable performance, lower energy consumption, less maintenance and shorter truck length than with triplex.
- Triplex mast options include versions without full free lift, for higher speed and lower maintenance.
- Fork range includes mast swivel and telescopic types suited to different specific applications.
- Mast-to-chassis struts increase mast rigidity, while low centre of gravity maximises overall truck stability.
- Clear all-round views are aided by excellent through-mast visibility, angled motor compartment and rounded chassis.
- Optional tilting side gates open with a flip of the upper bar for easy order picking.
- Thin front wall allows easy reach to place picked items into container or onto pallet.
- Spacious and secure cabin features carpeted walls, thickly cushioned floor, high-comfort seat (with weight adjustment) and inbuilt document and equipment holders as standard.
- Wide range of seating options and accessories includes folding version for choice of standing or sitting operation, with pneumatic spring mechanism for easy switching of console between positions.
- Choice of operator console styles and layouts is matched to different needs and preferences, enabling easy reach and use of controls (and clear display screen) in all cases
MODEL | CAPACITY (kg) | LOAD CENTRE (mm) | ENGINE |
---|---|---|---|
NVT11 | 1100 | 600 | Battery |
NVT12 | 1200 | 600 | Battery |
NVT13 | 1300 | 600 | Battery |
NVT14 | 1350 | 600 | Battery |
NVT15 | 1500 | 600 | Battery |
NVT15XL | 1500 | 600 | Battery |
NVT20 | 2000 | 600 | Battery |
Lead-acid batteries
Whether lead-acid or Li-ion batteries are the better choice for your electric lift trucks depends on your application and priorities.
Lead-acid power is familiar, tried and trusted, and many workplaces are already equipped to use it.
